Here you can view information on the connection, wiring and pin assignment as well as the dimensions of the most common card readers for PC CADDIE.id online and PC CADDIE.id offline card systems or download and print them as PDF files.

Each MOXA requires a fixed IP address. You must clarify which addresses may be assigned to the MOXA(s) in your network with your IT manager before installation.

If possible, the IP address for the MOXAs should be specified at the time of ordering so that it can be set before despatch.

The IP can be subsequently changed using the macro moxa macro:

1. The MOXA tool finds the connected NPort devices even if their IP address is not known
2. Select the serial server to be configured
3. Call up the configuration dialogue

1. Click on the tab Network tab
2. To change the IP, the Modify-box must be ticked
3. Enter the desired IP
4. Confirm with OK confirm

Please do not change any other options.

TIP If there are several MOXAs in the network, they can be distinguished by their MAC address. The MAC address can be found on the type plate.

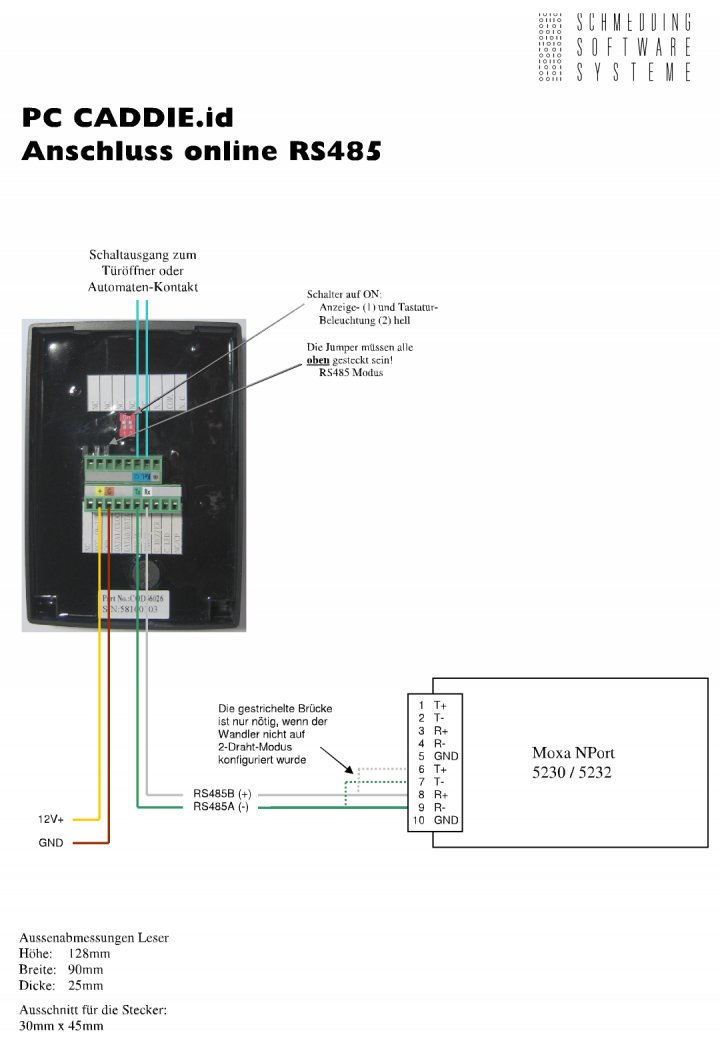

Minova MCR08 to Moxa 5232 connection diagram online

Minova MCR08 to Barix 5232 connection diagram online

Barix configuration

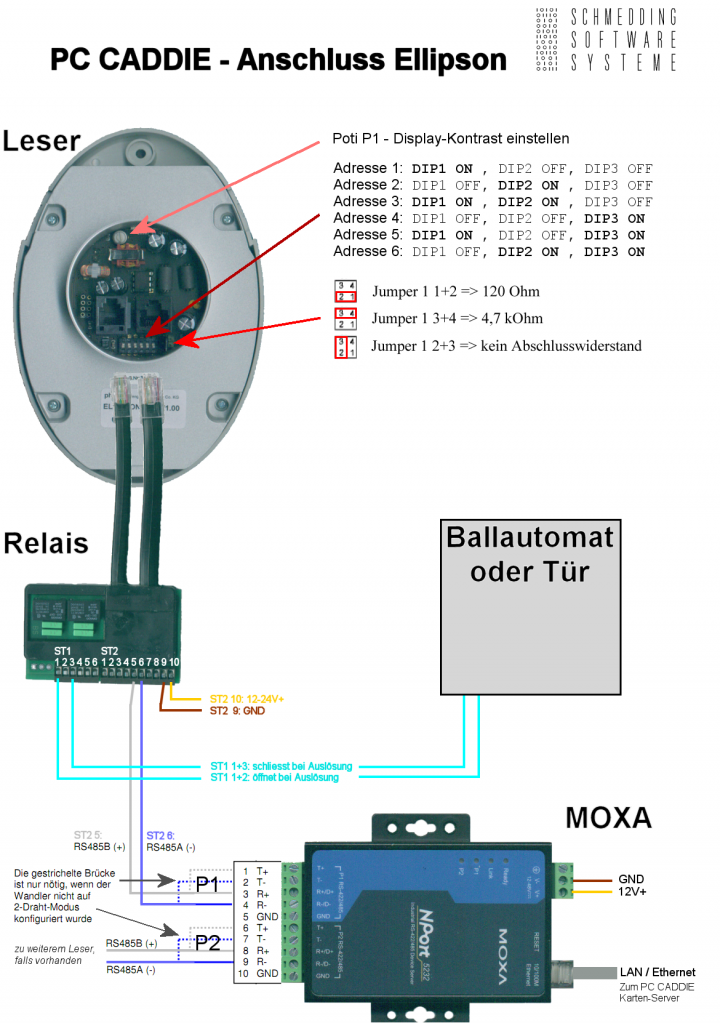

Wiring diagram online PHG - Ellipson

Please note with regard to relays: the maximum contact load capacity is 24V / 2 A (resistive load)!

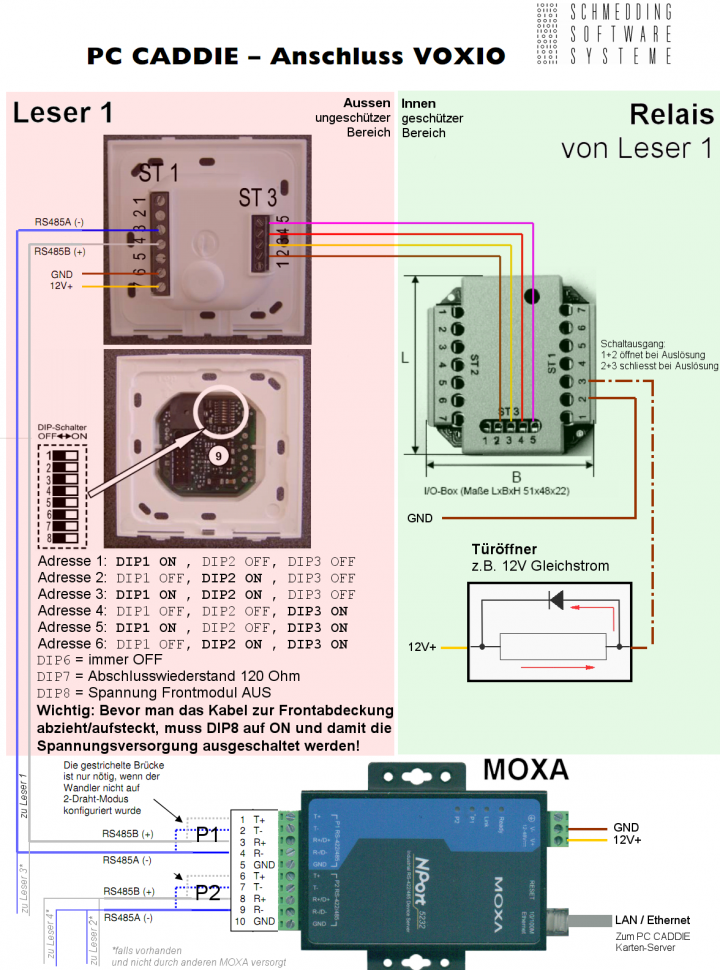

Wiring diagram online PHG Voxio

Please note with regard to relays: the maximum contact load capacity is 24V / 2 A (resistive load)!

Wiring diagram online Voxio Display

Wiring diagram online Voxio Touch

Wiring diagram online Voxio Touch Display

Wiring diagram online Voxio frame

Wiring diagram I/O 2 relay controller RS485

Wiring diagram I/O Controller 4 relays RS485

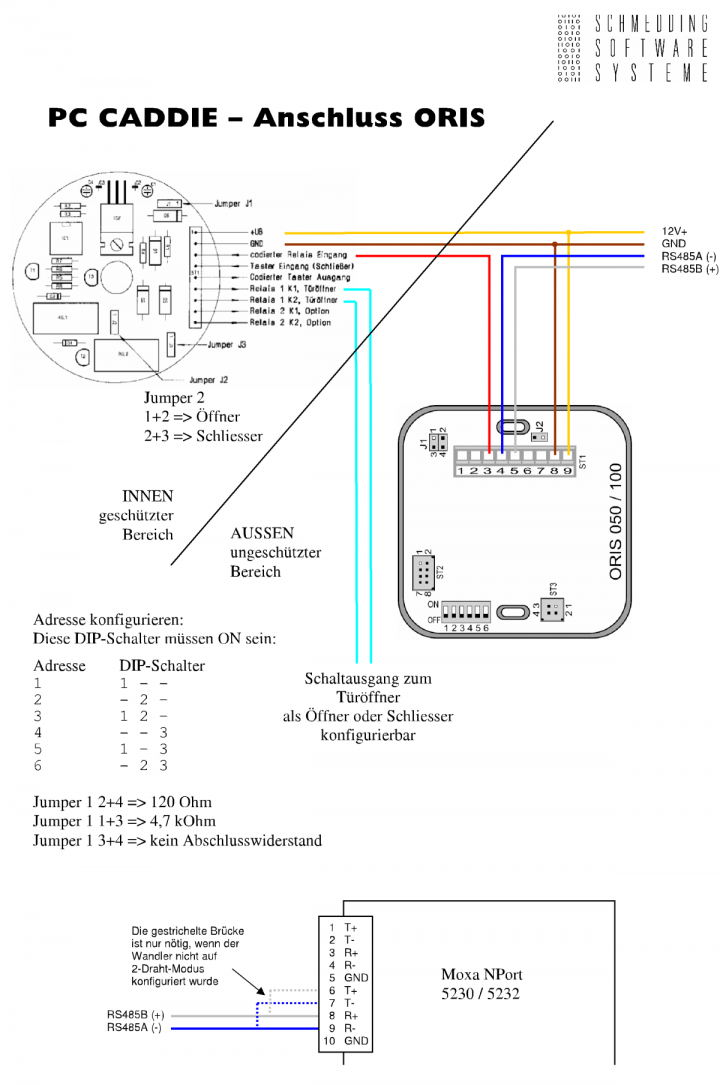

Wiring diagram online PHG Oris

Please note with regard to relays: the maximum contact load capacity is 24V / 2 A (resistive load)!

Wiring diagram online Quio

Please note with regard to relays: the maximum contact load capacity is 24V / 2 A (resistive load)!

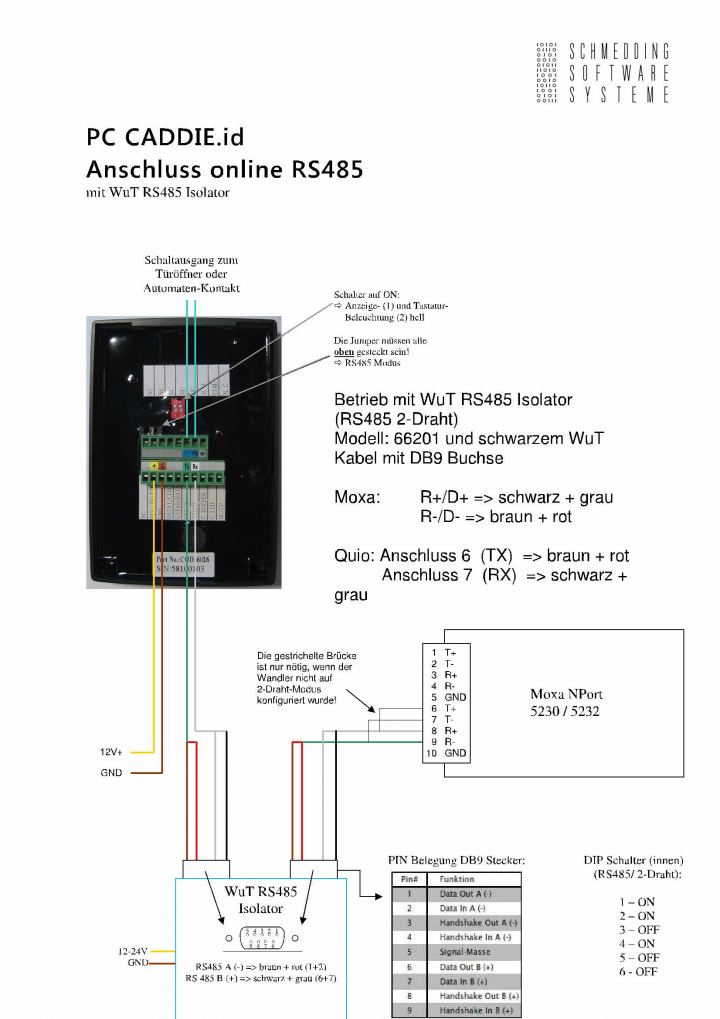

Connection diagram online with RS485 isolator

Please note with regard to relays: the maximum contact load capacity is 24V / 2 A (resistive load)!

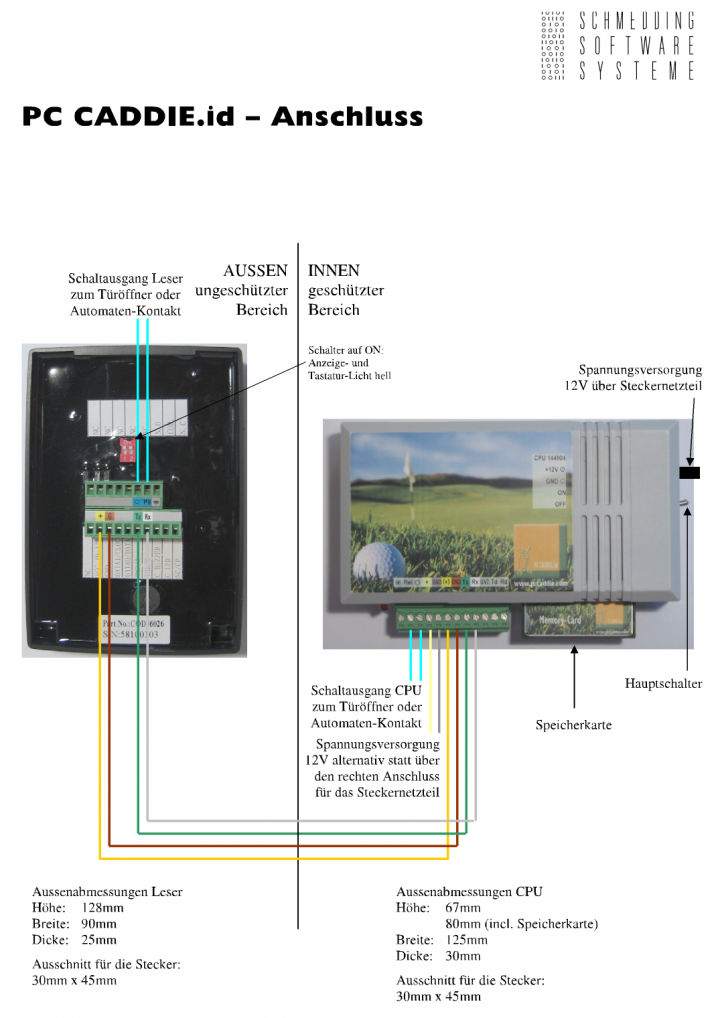

Offline connection diagram

The connection for triggering the balls (for ball machines) or for switching the normally closed solenoid (for doors) is located on the screwable plug-in strip of the CPU (mini PC). The Quio reader also contains a relay, which can be used as an alternative to the CPU if safety is not the top priority.

Please note with regard to the relay: the maximum contact load capacity is 24V / 2 A (resistive load)!

Connection diagram offline Voxio

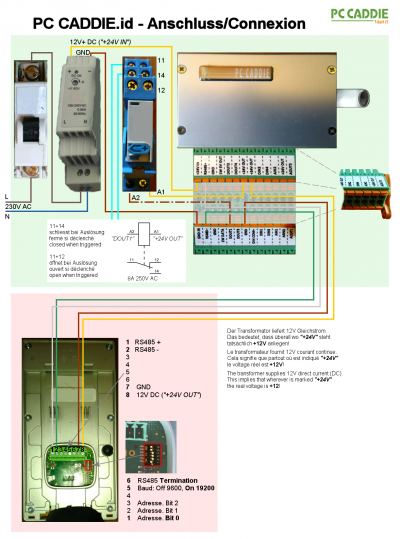

Wiring diagram offline

Please note with regard to relays: the maximum contact load capacity is 24V / 2 A (resistive load)!

Installation and requirements RS485 BUS / door reader:

Several door readers in series

Mounting door reader online:

Mounting door reader online

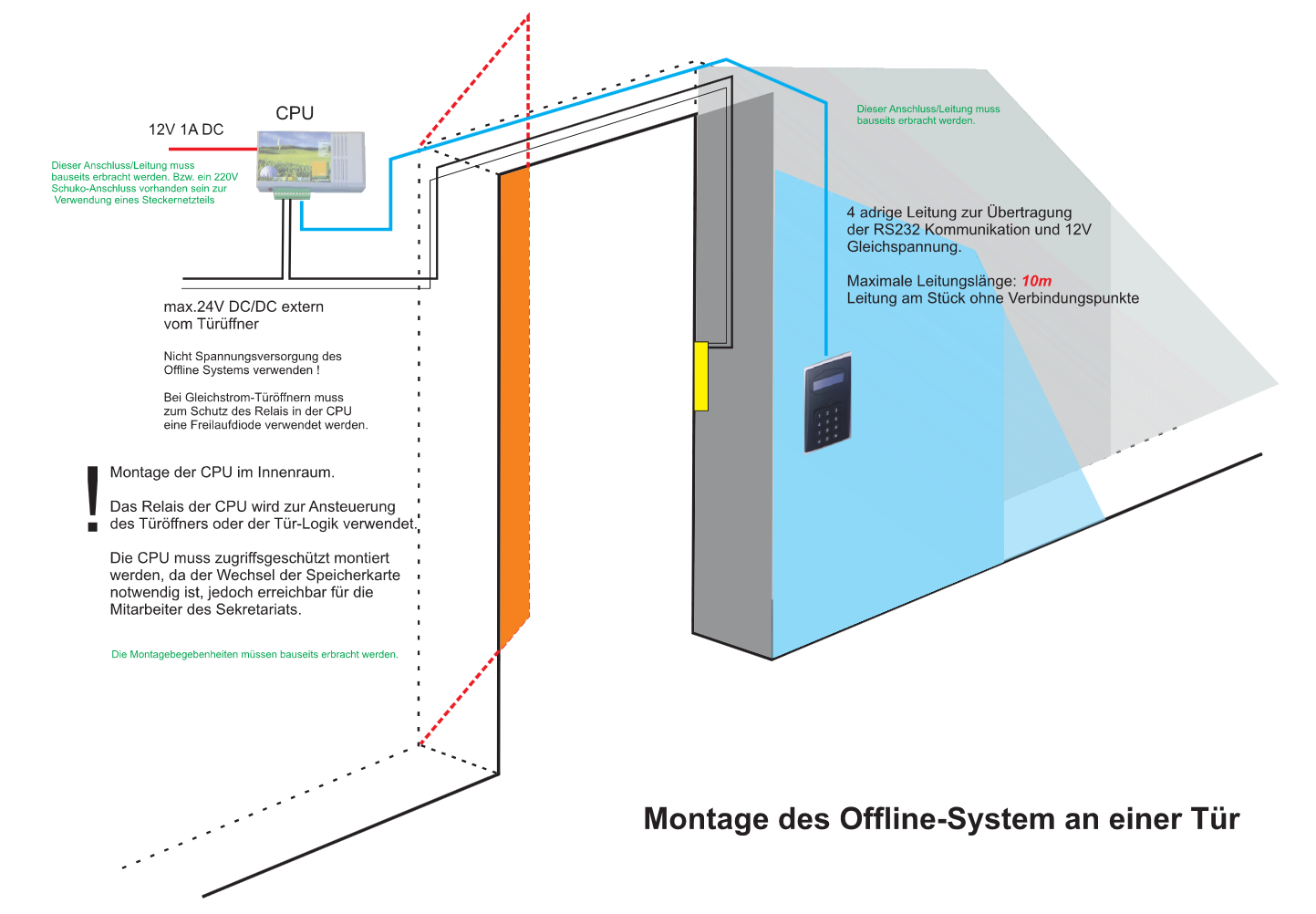

Mounting door reader offline

Mounting door reader offline

As the card systems in the offline system have to be installed in different environments depending on the environment, and the configuration of the cables and connections requires specialist knowledge, we offer 3 different pre-assembly pre-assembly bundles tailored to your structural situation.

1. pre-assembled and tested on a top-hat rail for use in ball machines or doors with an existing installation environment

2. pre-assembled and tested on top-hat rail in surface-mounted (AP) housing

3. pre-mounted and tested on a top-hat rail in a flush-mounted (UP) cabinet

PCCADDIE technicians will determine which pre-installation is the right one in your case on a case-by-case basis after the purchase. The only important thing is the purchase of the pre-installation at an all-inclusive price.
